Galactic Nebulae Barnard 175, vdB 152

vdB 152
vdB 152: Borg 55FL f3.6; WO ASI2600MM Pro; Sky-Watcher EQ5 with AstroEQ modification; L 5h 28m, R 2h 57m, G 2h 42m, B 2h 54m, Hα 6h 10m, OIII 3h 35m; Rothenburg/LU, CH; © 2023 Tobias Halter
vdB 152
vdB 152: Image taken with Mayall 4-metre telescope at Kitt Peak National Observatory. © 2020 T.A. Rector (University of Alaska Anchorage) and H. Schweiker (WIYN and NOIRLab/NSF/AURA) [727]

History

In 1919 Edward E. Barnard published his discovery of dark nebulae in «On the Dark Markings of the Sky». This nebula is listed with number 175 with the notes: «Large; diam. 1°; bright nebula in the north part.» [239]

In Barnards photographic atlas, published in 1927 after his death, there is an additional description: «This is a large dark spot, extended north and south, 62' in its largest diameter. In its upper part is the star BD +69°1231 (8.8 mag) which is nebulous. This is apparently a large dark nebula, the brighter part of which forms the star +69°1231. In Monthly Notices, 69 (December), 1908, Dr. Max Wolf gives a photograph of the nebula, stating that the object was discovered by Dr. Kopff at Heidelberg on October 12, 1908. It is conspicuous on a photograph of mine made with the Willard lens at the Lick Observatory, September 24, 1895, with 5h 00m exposure. It is also shown on a photograph of mine made with the Bruce telescope, July 20, 1904, with an exposure of 3h 01m. By inadvertence, reference to this object was omitted in Lick Observatory Publications, 11, where it is cut out by the matting in Plate 83. [609]

In 1966 Sidney van den Bergh searched the «Palomar Sky Survey» photographic plates for reflection nebulae and listed the reflection nebula around the star BD +69°1231 as vdB 152. He included it in his 1966 «Catalog of Reflection Nebulae» and classified the nebula as «Type I», which means the star illuminating the nebula is inside the nebula. He noted: «Comet tail nebula? At edge of small very dense cloud.» [255]

Physical Properties

Data from Simbad [145]
NameTypeRA
(J2000.0)
Dec
(J2000.0)
PM
[mas/y]
Parall.
[mas]
Rvel
[km/s]
zSP
Type
Size
[']
MagnitudesIdentifiers
vdB 152Y*O22h 13m 25s+70° 15' 05"5.815 2.6998-82.760101-0.000276B9.5VB 9.41; V 9.29; G 9.244973; J 8.896; H 8.878; K 8.8182MASS J22132453+7015051; AG+70 770; AP J22132453+7015051; BD+69 1231; GEN# +0.06901231; GSC 04467-00434; Gaia DR1 2229564527477739264; Gaia DR2 2229564527477739264; Gaia DR3 2229564527477739264; PPM 11124; SAO 10287; TIC 323400573; TYC 4467-434-1; UBV M 4849; VDB 152
Barnard 175DNe22h 14m 00s+69° 54' 00" 60 × 60Barnard 175; [DB2002b] G110.12+11.08

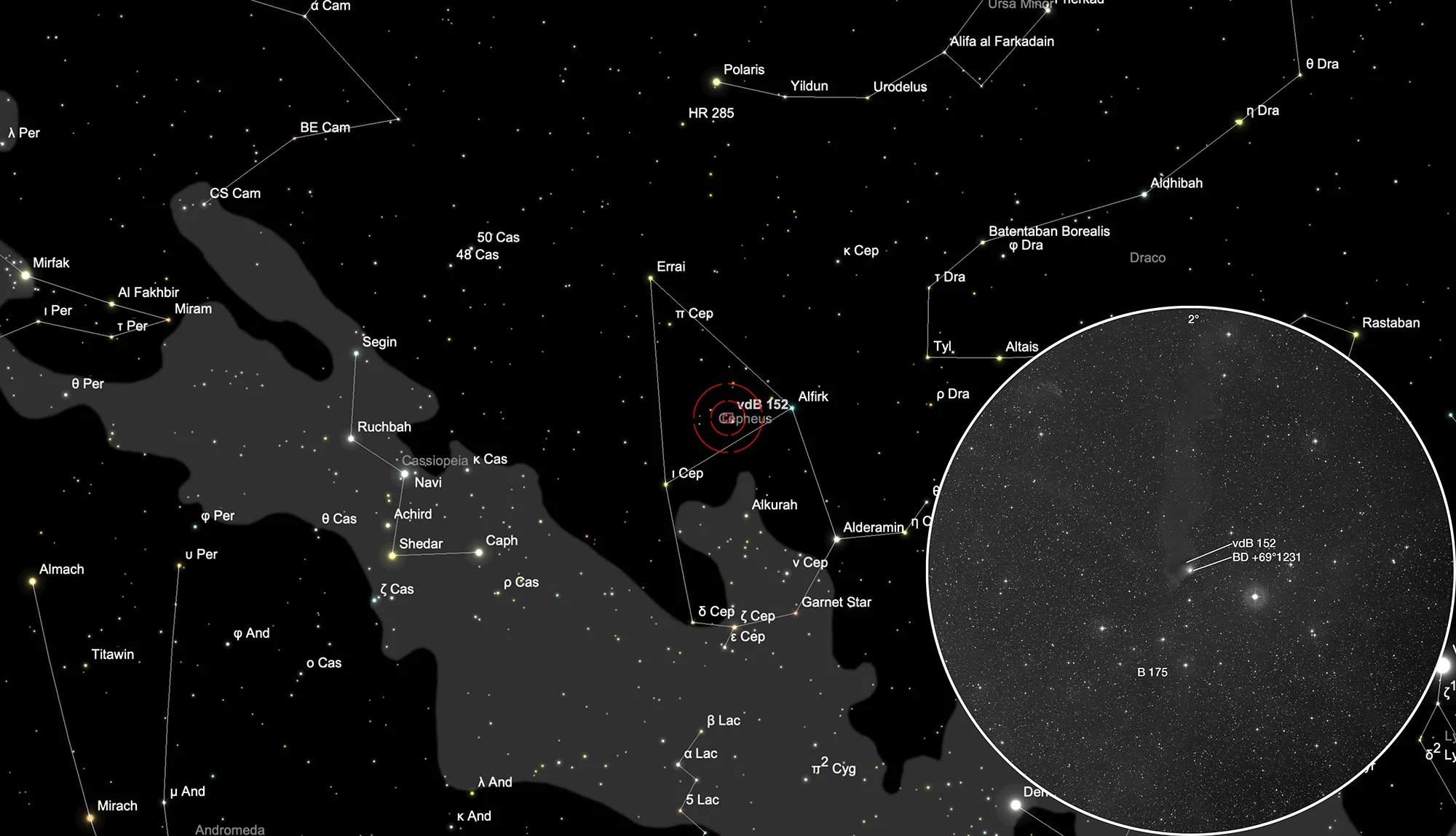

Finder Chart

The reflection nebula vdB 152 is located in the constellation Cepheus. On the northern hemisphere this constellation is circumpolar. On 25 August vdB 152 is in opposition to the Sun and culminates at local midnight.

Cepheus: Galactic Nebulae Barnard 175, vdB 152
Finder Chart Galactic Nebulae Barnard 175, vdB 152
always
07:38 | 66.4°
never
Charts created using SkySafari 6 Pro and STScI Digitized Sky Survey. Limiting magnitudes: Constellation chart ~6.5 mag, DSS2 close-ups ~20 mag. Times are shown for timezone UTC, Latitude 46.7996°, Longitude 8.23225°, Horizon height 5°, Date 2025-04-23. [149, 160]
